Front View
ISO 13485
Hover to inspect optical detail
Select Inspection Angle (Front, Side, Back, Optics):
1-Year Comprehensive Warranty & On-Site Installation
Calibrated with German optical test targets. Biomedical engineer support across India.
Slit Lamps (Biomicroscopes)
SKU: MME-SL-980PRO
Manglam Elite-5X Tower Slit Lamp Biomicroscope (LED Optics)
Brand: Manglam Optics
•
In Stock (Ready for Dispatch)
Hospital Standard Price
₹165,000.00
₹185,000.00
Save 11%
+ Applicable GST (12% Medical Rate)
5-Step Drum Galilean Magnification Slit Lamp with German Optical Glass, Haag-Streit Tower Illumination, and Integrated Yellow Fluorescein Filter.
Clinical & Optical Highlights:
- 5-Step Revolving Drum Magnification (6x, 10x, 16x, 25x, 40x)
- Haag-Streit Style Overhead Tower Illumination System
- German Schott Apochromatic Glass with Multi-Layer Anti-Reflective Coating
- Continuously Variable Slit Width from 0mm to 14mm with 360° Slit Rotation
- Built-in Filters: Heat Absorption, Cobalt Blue, Red-Free (Green), Yellow Barrier
- Pre-wired for Goldmann Applanation Tonometer Mounting

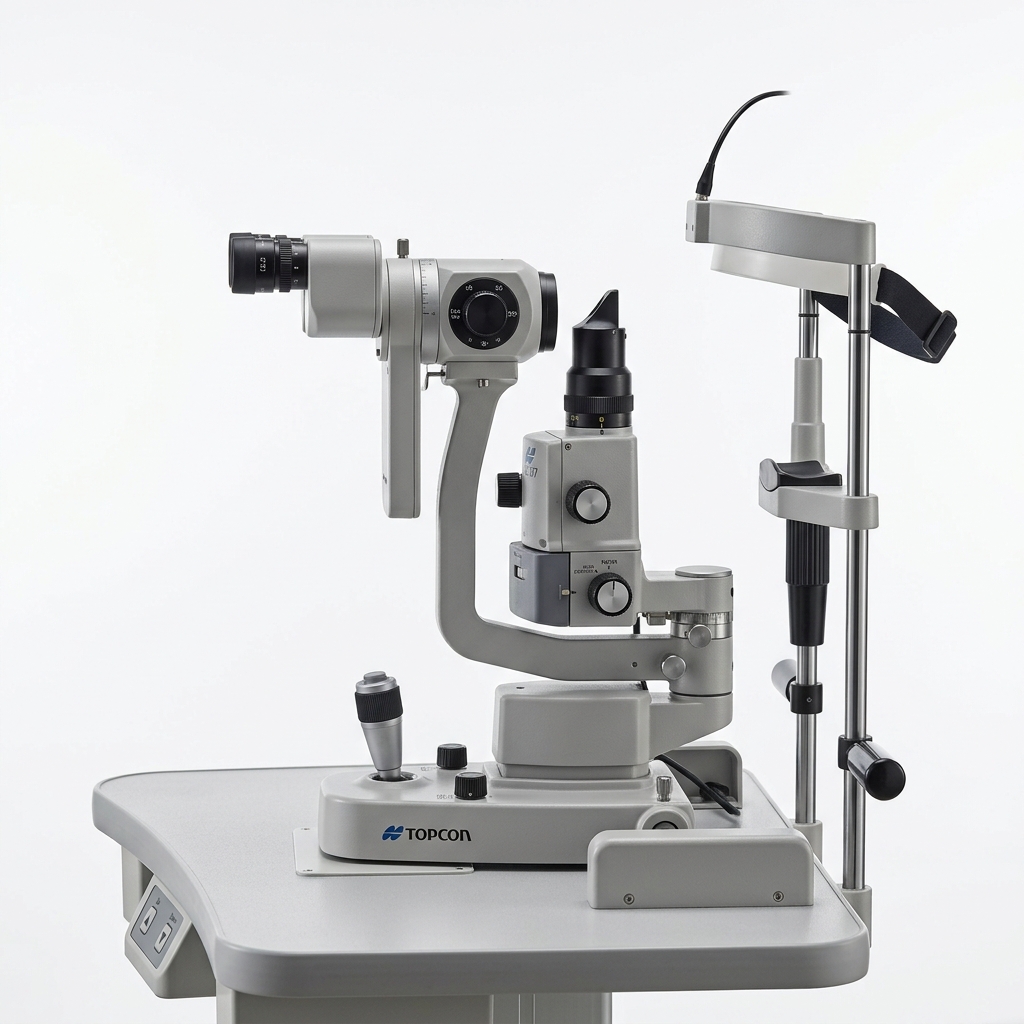

- Smooth 3-Axis Joystick with Ultra-Smooth Fluid Mechanical Travel
"Eyes are the windows to the soul — crafting precision tools to protect that gift is our sacred duty."
✨ "हर नजर को मिले संपूर्ण स्पष्टता और नई रोशनी।"
Crate Packaging
Calibration Cert
Surgeon Training
Engineering & Optical Parameters
Verified against ISO Factory Standards| Specification Parameter | Standard Value & Configuration |
|---|---|
| Microscope Type | Galilean Converging Binocular |
| Magnification Steps | 6x, 10x, 16x, 25x, 40x |
| Eyepieces | 12.5x High-Eyepoint Widefield with Diopter Adj (-7D to +7D) |
| Interpupillary Distance | 48mm - 80mm adjustable |
| Slit Length & Width | 0 to 14mm continuously variable |
| Slit Aperture Diameters | 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm |
| Slit Angle | 0° to 180° continuous horizontal rotation |
| Light Source | High-Luminance Warm-Cool LED (50,000 Hours Lifespan) |
| Working Distance | 100 mm |
| Power Input | AC 100V-240V, 50/60Hz, 30VA |
| Weight | 22.5 kg with Table Top Base |
Detailed Clinical Description
The Manglam Elite-5X Tower Slit Lamp represents the pinnacle of anterior segment visualization. Engineered with imported high-transmission coated German optics, it provides crystal-clear stereoscopic depth perception and razor-sharp slit definition.
Equipped with an ultra-bright cool LED illumination tower that eliminates heat transfer to the patient's cornea, making prolonged fundus and corneal examinations comfortable. Compatible with all standard Applanation Tonometers and beam-splitter camera adapters.
Standard In-The-Box Accessories
Heavy-duty Dust Cover
Calibration Test Bar
Spare LED Module & Fuse Set
Breath Shield (Clear Acrylic)
Chinrest Paper Pack (100 sheets)
User Manual & Calibration Certificate
